The Manual Device Mark & Vision Station is a solution for product marking and following imprint verification, especially for the medical field to meet the UDI requirements by the American Food and Drug Association (FDA).

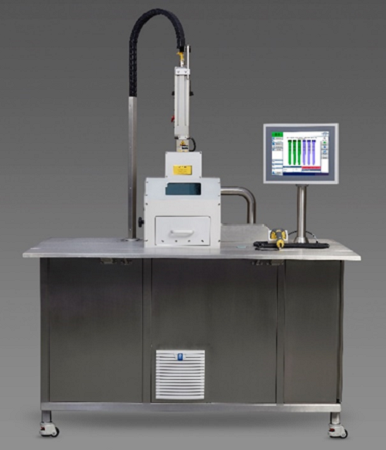

Pen Mark and Vision station

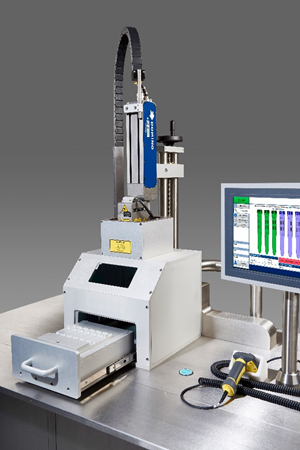

Slide-in tray with laser head

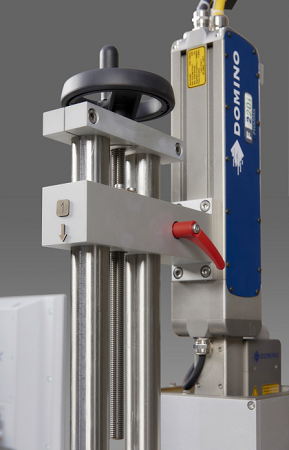

Adjustment unit

The station components include a laser printing system, a handheld scanner system, and the KUPvision software with a user interface optimized for touchscreens. The software is used for format creation and management, as well as for parameterization of the printing system. It is not necessary to make separate settings directly on the laser.

Technical data and features:

  • Electrical connection: 400 VDC
  • Intuitive user interface optimized for touch screens
  • Printer support: Domino F-Series fiber laser
  • Integrated Domino DPX 500 suction device
  • Automatic printer parameterization
  • Full printer configuration and management
  • UDI direct marking
  • Readable code types: 1D, 1D Stacked, Code 39, Code 128, 2D including GS1 data matrix and PPN code
  • Handheld scanner (wireless or wired)
  • Network interface and 230 V service port
  • Extremely low maintenance
  • Highest quality marking in static mode
  • Laserklasse I
  • Complies 21-CFR Part 11 requirements and includes GAMP compliance and validation packages
  • Data interface for higher-level systems
