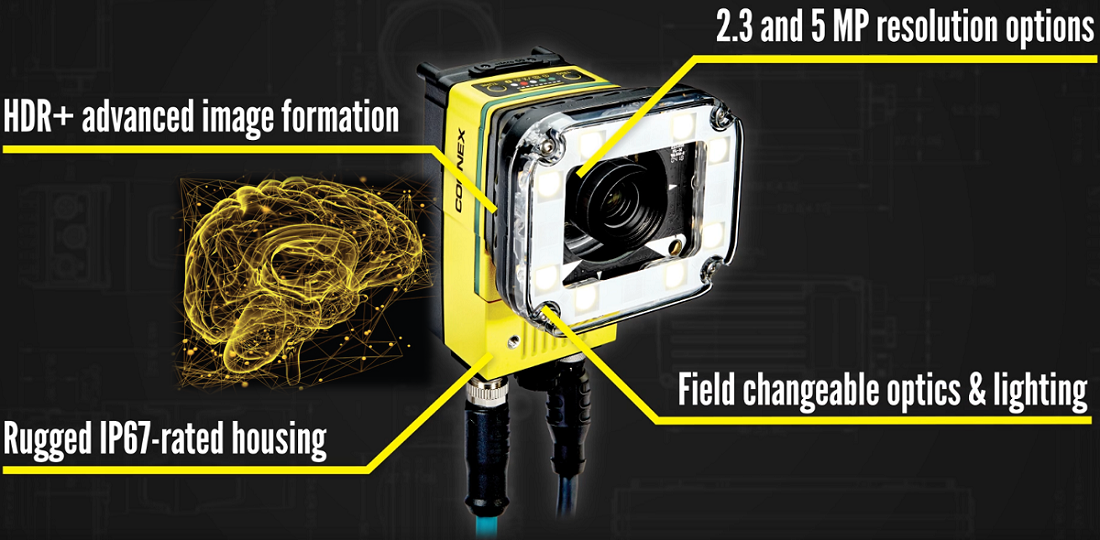

The In-Sight D900 is a smart camera powered by In-Sight ViDi software designed specifically to run deep learning applications. This embedded solution helps factory automation customers easily solve challenging industrial OCR, assembly verification, and random defect detection applications anywhere on the line that have gone uninspected because they are often too difficult to program with traditional, rule-based machine vision tools.
Solves challenging OCR, assembly verification, and defect detection applications
In-Sight ViDi applications are deployed on the In-Sight D900 smart camera without the need for a PC, making deep learning technology accessible to non-programmers. It uses the familiar and easy-to-use In-Sight spreadsheet platform which simplifies application development and factory integration.

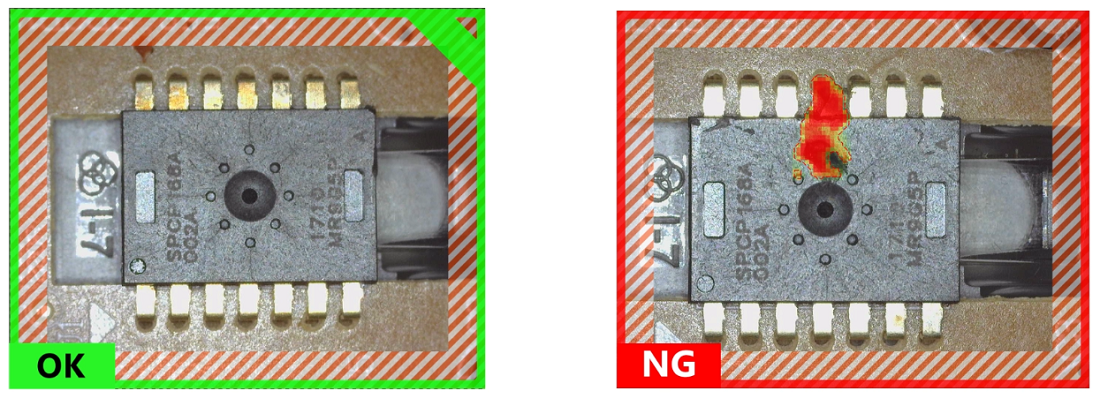

Part check with D900

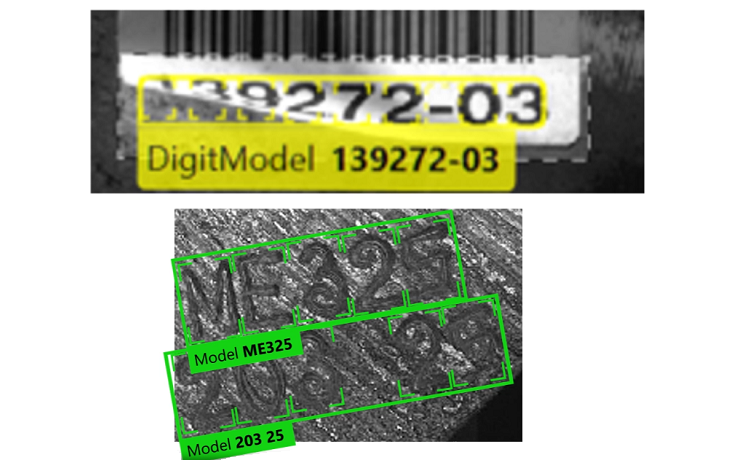

Decodes challenging OCR applications in minutes
The In-Sight D900 deciphers badly deformed, skewed, and poorly etched codes using optical character recognition (OCR). The In-Sight ViDi Read tool works right out of the box, dramatically reducing development time, thanks to the deep learning pretrained font library. Simply define the region of interest and set the character size. In situations where new characters are introduced, without vision expertise, this robust tool can be retrained to read application-specific codes that traditional OCR tools are not able to decode.

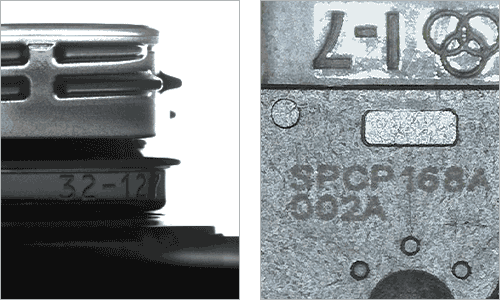

OCR
OCR

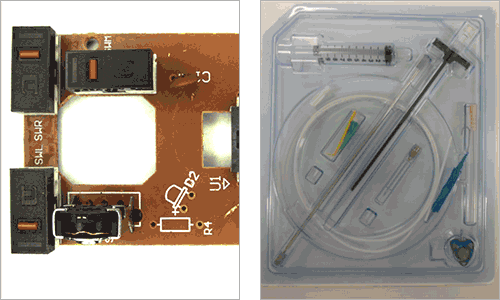

Performs fast and accurate assembly verification
The In-Sight D900 uses artificial intelligence to reliably detect complex features and objects and verifies parts and kits are assembled correctly based on their location within a pre-defined layout. The In-Sight ViDi Check tool can be trained to create an extensive library of components, which can be located in the image even if they appear at different angles or vary in size.
OCR with ViDi Read-Tool

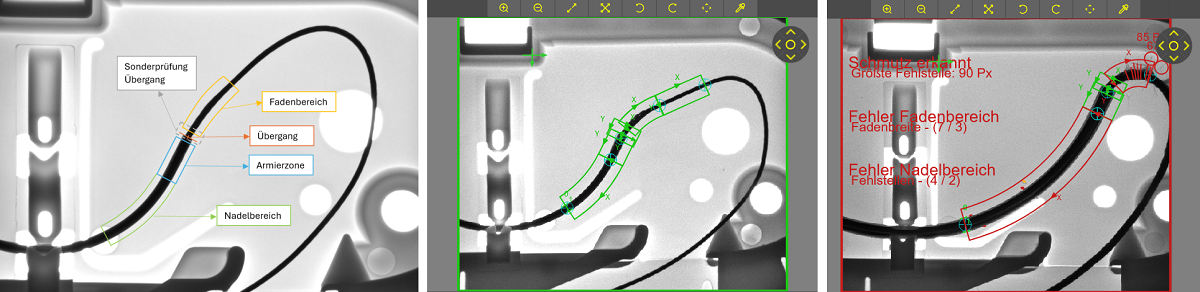

Assembly check

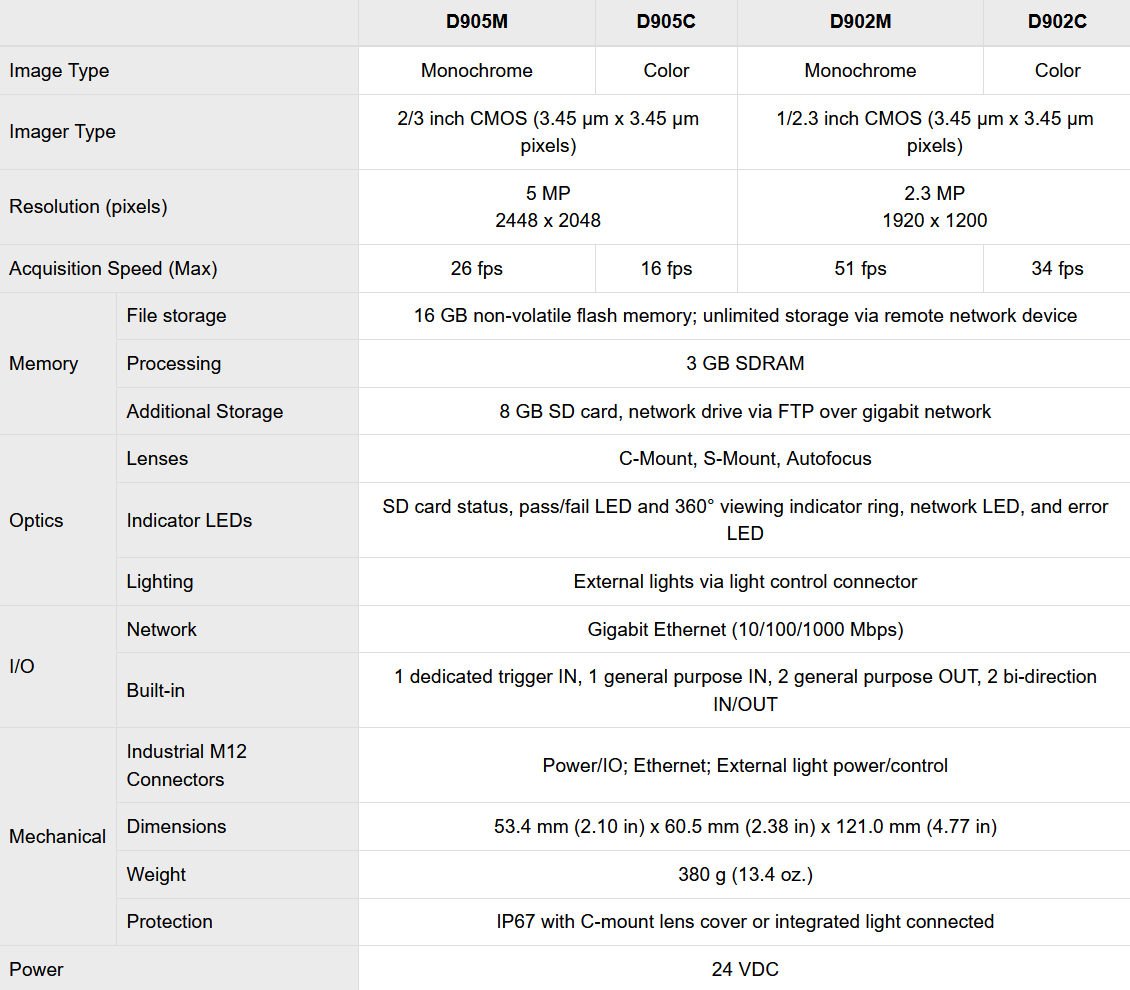

Technical data
