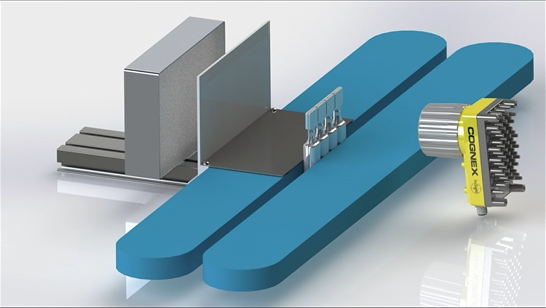

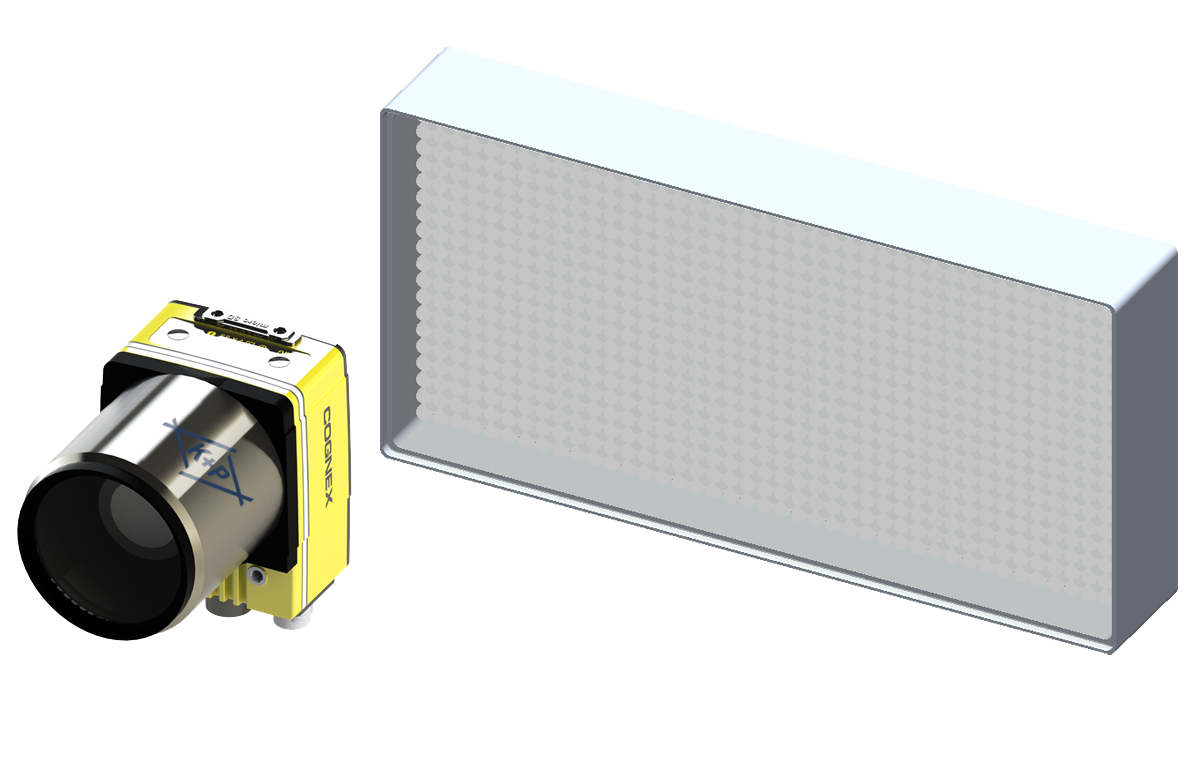

The KPL310 has been specially developed for applications that require very intense direct light illumination or back light illumination with directional light. The illumination can be used, for example, for completeness checks, fill level checks or presence checks. The lighting has been designed to save space. Triggering by the In-Sight system is carried out via the supplied cable. The flash mode achieves a high light intensity and prevents the LEDs from overheating.

Due to the large number of LEDs and the possibility of very short pulse times, an almost complete independence from extraneous light influences can be ensured, even at greater distances. The housing milled from solid material and the bonded protective glass ensure protection class IP65, which also allows use in rugged environments.

Features of KPL310

  • Very high light intensity
  • 840 high-power LEDs
  • Direct control by the camera
  • Flash operation in overcurrent range without reducing lifetime
  • Very homogeneous light field
  • Can be used up to a distance of 2.5 meters
  • Integrated protection circuit
  • Simple mounting on the rear panel
  • Flash duration between 16 μs and 10 ms

Technical data

  • Operating voltage 24 VDC
  • Self-current consumption max. 11 A (pulse current)
  • Triggerlevel Low 0 ... ≤ 10 V
  • Triggerlevel High ≥14 ... 25 V
  • Operating temperature 0 to 45 °C
  • Protection class IP65
  • Storage temperature - 40 to 85 °C
  • Pulse width 10 ms and duty cycle 10 % (the pulse time is monitored by an internal protective circuit)

Pin assignment

Dimensions (mm)
