Code reading 360°

In the pharmaceutical industry, special requirements and strictures usually apply with regard to product tracking. These include:

Increasing quantities of small products, so-called micro batches, require a highly flexible and at the same time efficient and reliable reading process
Optimisation of productivity and increase in such micro-batches, in particular processes such as set-up times, format changes and cleaning

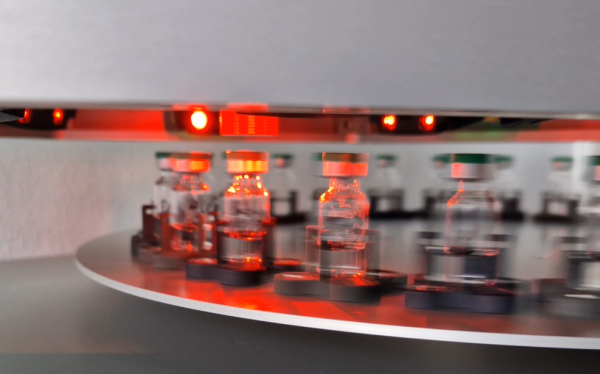

Reliable reading of codes on round containers such as vials, ampoules, bottles, cans or tubes
Maximum production efficiency / output of up to 600 products per minute
No interruption of the production facilities
Rugged housing
Easy integration into existing control systems, e.g. Profibus, CAN bus, Interbus, Profinet, EIP, digital I/O etc.
External light - absolutely independent of external light influences

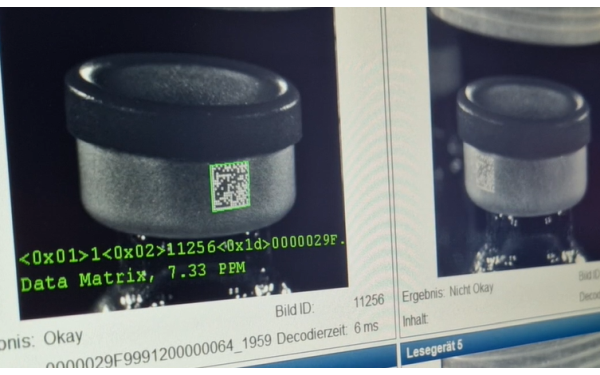

Alignment-neutral code read-back, verification of GS1 conformity, in-line verification in accordance with ISO 15415, 16022, AIM DPM or IAQG

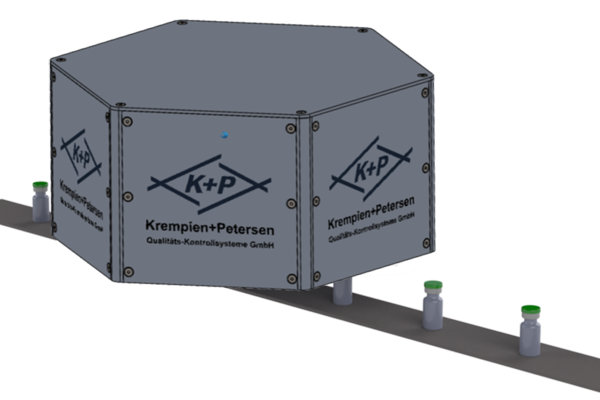

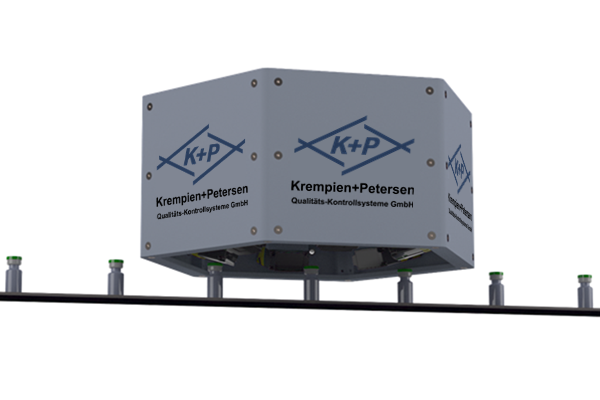

Out-of-the-Box System
Plug & Play
Full IQ / OQ Documentation
Optional: Visualisation and format management via our software KUPvision

Fully integrated COGNEX DataMan 280
Code size min. 3 x 3 mm, max. 8 x 8 mm
Output up to 600 products per minute
Format range min. Ø 8 mm, max. Ø 30 mm
Cap height from 4 mm to 8 mm
Data output via TCP/IP, read content as string or "NOREAD", integrated Siemens S7-1200
Positioning accuracy max. ± 2 mm from center position
Trigger light sensor, signal light, visualization, format management, audit trail
Power supply 24 V
Net weight 7 kg
