The KPL200 was specially developed by us for applications where a lot of light is required at short and long distances and where the field of view needs to be illuminated as homogeneously as possible. KPL200 is compatible with all Cognex In-Sight series (In-Sight 5000, In-Sight 7000, In-Sight 3800).

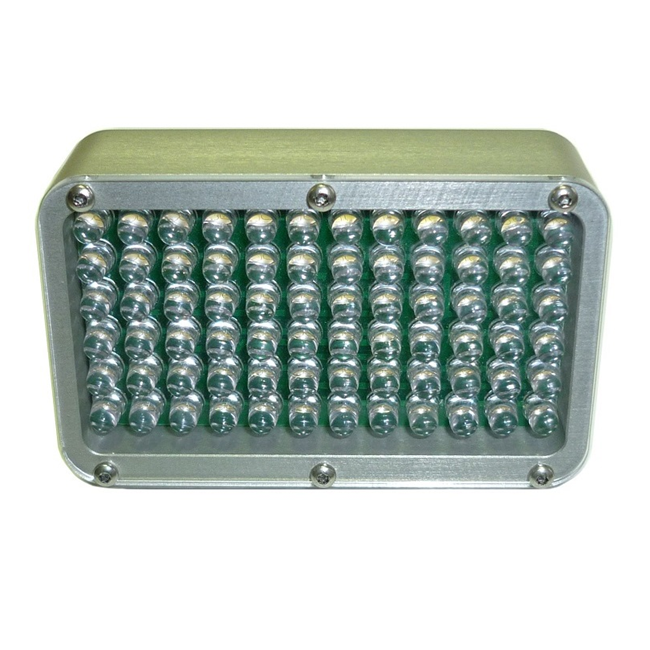

KPL200 with optical protective glass (front view)
KPL200 with In-Sight 560x
An integrated circuit protection provides reverse polarity protection and prevents the LEDs from overheating. Due to the large number of LEDs and the possibility of very short pulse times, an almost complete independence from extraneous light sources can be ensured. The optical protective glass in front of the LEDs is replaceable so that the original image quality can be restored in case of contamination or damage.
KPL200 and In-Sight 7000 series

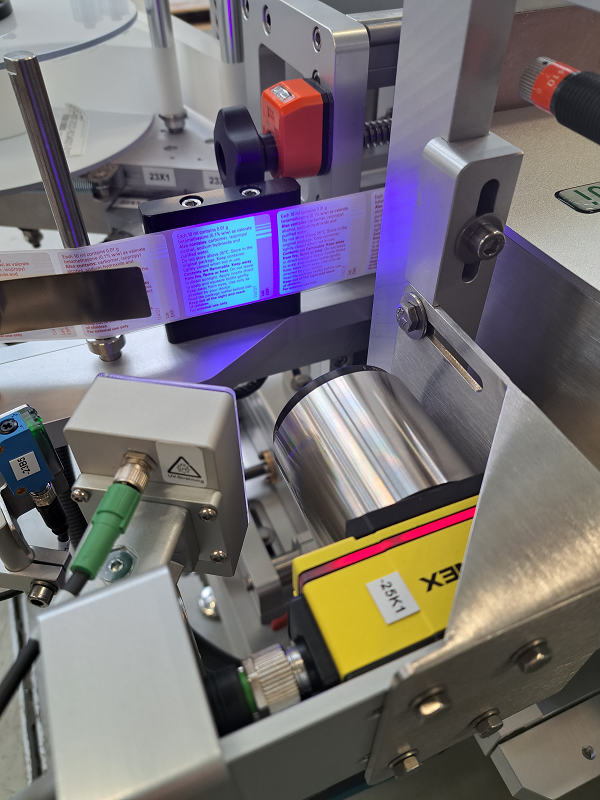

KPL200 with UV Leds for UV Code reading

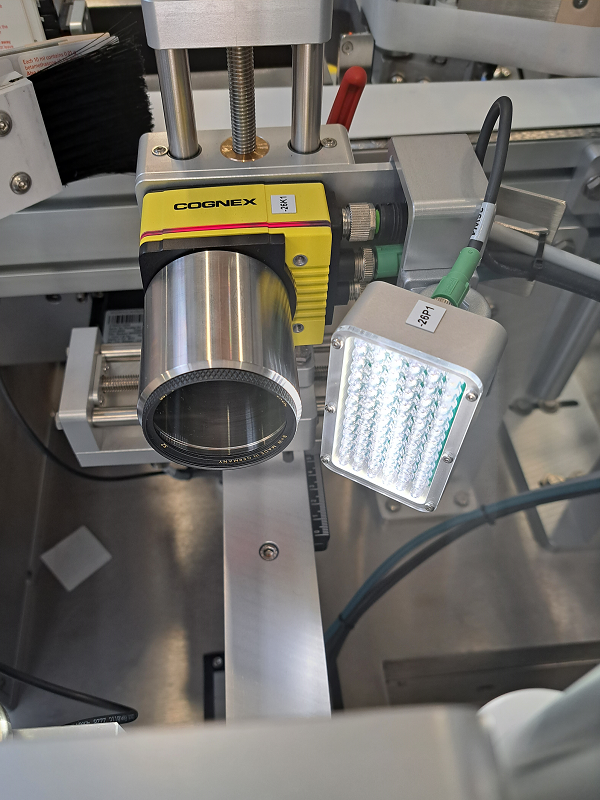

KPL200 with white Leds for OCR reading
Label Inspection with our KUPvision (UV Code und OCR reading)
Features of KPL200
- High light intensity
- Very homogeneous light field
- 72 high-power LEDs (White, Red, Blue, UV and IR)
- Can be used up to a distance of 1.5 meters
- Replaceable acrylic glass
- Direct control by the camera
- Integrated protection circuit
- Flash operation in overcurrent range without reducing lifetime
- Flash duration between 16 μs and 1 ms
Technical data
- Operating voltage 24 VDC
- Self-current consumption max. 1.1 A (pulse current)
- Triggerlevel Low 0 ... ≤ 2.8 V
- Triggerlevel High 3.3 ... 35 V
- Operating temperature 0 to 45 °C
- Protection class IP 50 to 64
- Storage temperature - 40 to 85 °C
